HDI PCBs
HDI PCB TECHNOLOGY
The HDI - High-Density Interconnector PCBs, have a higher wiring density compared with standard PCBs. Building on our experience in manufacturing technology, the PCB Connect Group can support HDI PCB’s up to any layer interconnected technology. For more information on how the PCB Connect Group can advise on your HDI requirement please contact your local PCB Connect business.

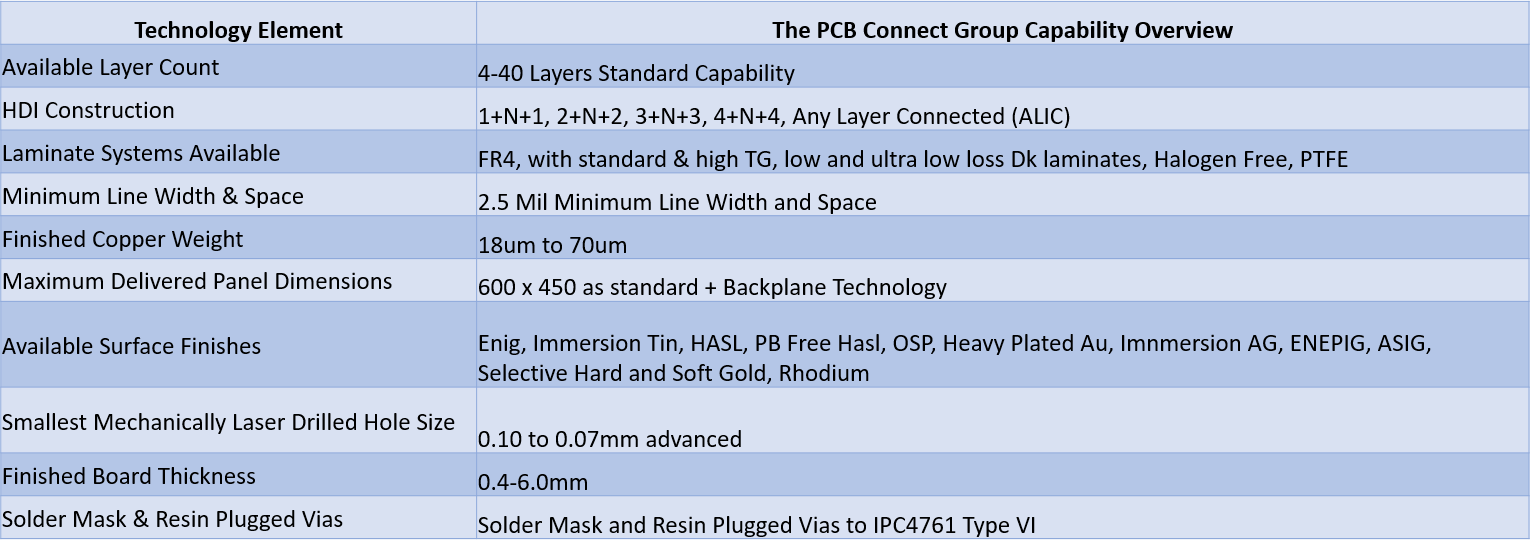

| Technology Element | The PCB Connect Group Capability Overview |
|---|---|
| Technology Element Available Layer Count | The PCB Connect Group Capability Overview 4-40 Layers Standard Capability |
| Technology Element HDI Construction | The PCB Connect Group Capability Overview 1+N+1, 2+N+2, 3+N+3, 4+N+4, Any Layer Connected (ALIC) |
| Technology Element Laminate Systems Available | The PCB Connect Group Capability Overview FR4, With Standard & High TG, Low and Ultra Low Loss Dk Laminates, Halogen Free, PTFE |
| Technology Element Maximum Line Width & Space | The PCB Connect Group Capability Overview 2.5 Mil Minimum Line Width and Space |
| Technology Element Finished Copper Weight | The PCB Connect Group Capability Overview 18um to 70um |
| Technology Element Maximum Delivered Panel Dimensions | The PCB Connect Group Capability Overview 600 x 450 As Standard + Backplane Technology |
| Technology Element Available Surface Finishes | The PCB Connect Group Capability Overview Enig. Immersion Tin, HASL, PB Free HASL, OSP, Heavy Plated Au, Immersion AG, ENEPIG, ASIG, Selective Hard and Soft Gold, Rhodium |
| Technology Element Smallest Mechanically Laser Drilled Hole Size | The PCB Connect Group Capability Overview 0.10 to 0.07mm Advanced |
| Technology Element Finished Board Thickness | The PCB Connect Group Capability Overview 0.4 - 6.0mm |
| Technology Element Solder Mask & Resin Plugged Vias | The PCB Connect Group Capability Overview Solder Mask and Resin Plugged Vias to IPC4761 Type VI |
